Description
MS-UP2 HD Ultra-Portable interview Video Recorder Kit
The new MS-UP2 HD Ultra-Portable interview recorder has been designed to be the World's smallest fully featured PACE-compliant evidential video recorder. It has cutting-edge technology to deliver a recorder capable of meeting all legislation for evidential recordings in a truly compact size. The device has been designed to operate standalone, writing to media, or form part of a network solution, uploading the data to a central repository when connected to the network. Software is supplied, but it should be noted that the solution has been developed to be backend agnostic. The files delivered are in a non-proprietary format, and the metadata is a standard .json and/or .xml file which can be mapped into any database that can import .xml data.

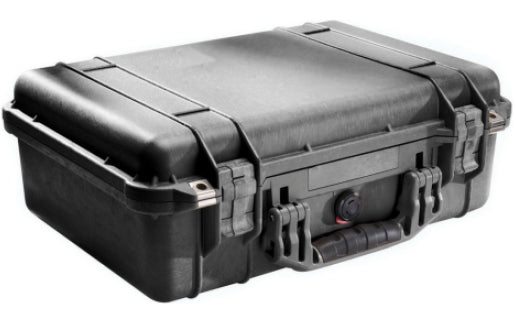

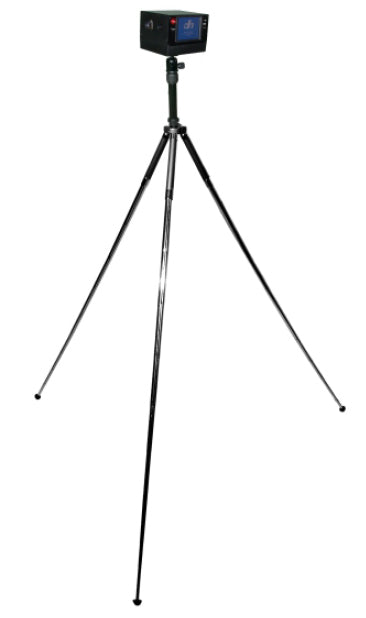

Complete with Solid Carry Case, Tripod, EvidenceLink Software
Features include:
- All in one design (130 x 115 x 98mm)
- Up to 3 channel video recording
- Integrated 4K Overview camera
- Integrated 1080p 10 x Zoom Camera
- Integrated screen
- Meets all legislation, including PACE.
- AES256 Encryption
- SHA256# Digital Signature
- Generates two copies simultaneously
- Network upload
- Auto delete on local SSD once uploaded files SHA256# is verified.
- Integrated battery backup to prevent Data Corruption.
- Simple REC/STOP control
- Burnt in time, date, elapsed time, serial number
- Meta data entry via WebDav or web interface.
- 3-4 Hour Battery Pack
MS-UP2 HD Ultra-Portable interview Video Recorder Kit
| Item |
Specification |
Notes |
|---|---|---|
| Wide Angle Camera | 130° Horizontal, 50° Vertical, 4K,1080p, 720p, 540p. |
Offers overview of room at a resolution digital zoom can be used post recording. |
| Zoom Camera | 1080p, 720p, 540p. 10 x Optical Zoom Camera | Offers zoom to frame subject area and record in HD. |
| Video Input | BNC AHD Camera input | Allows third camera to be connected if required |
| Storage | Internal = 64GB eMMC Flash Memory External = MicroSD/USB |
Records master copy internally for upload and offers options for removable copy. |
| Video | H.265 High Efficiency Video Coding (multiple rates). | Offers the best format to maximise resolution and minimise storage requirements. |
| Audio | Video Mode = AAC Audio Only Mode = MP3 |
Non-proprietary formats for integration to third party solutions. |
| Microphones | 2 x Internal and 1 x 3.5 mm jack to connect external stereo microphone (optional) |
2 internal microphones offer backup if external microphone is not used or fails. |
| Data Security | AES256 Encryption | Protects data on device while outside of a secure environment |
| Integrity | SHA256# Digital Signature | Provides chain of evidence from point of capture through to presentation in court |
| USB | USB2.0 | Offers interface for USB backup or DVD Backup |
| RJ45 | High Speed 10/100 Ethernet | Offers upload of files, live streaming and remote setup/diagnostics. |

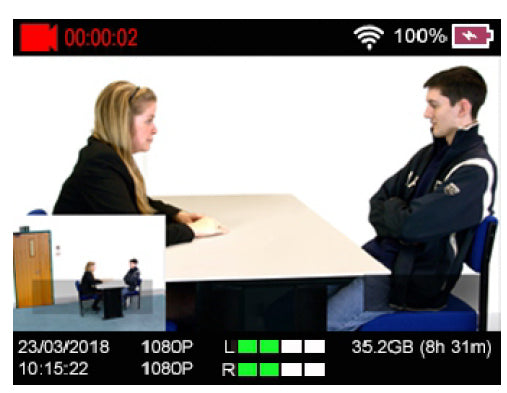

| Screen | 3.5” Touch Screen | Set up monitor with status information including audio level indicators and memory usage |
| Power | 12V DC Input (Standard) Battery 3-4 hours recording |
Versatile power options |
| GPIO | 8 Pin | External triggers and indicators can be connected. |
| LED | 2 x LED Record and Monitoring Indicator | Visual indicator when in record and a second to show when being monitored |
| Audit | Read-only access full audit trail. | |
| Dimensions | D130 x W115 x H98 mm | |
| Weights | 800g - 3.7kg in Carry Case | Recorder only |
