MS-HDT2 Interview Video Recording System Kit

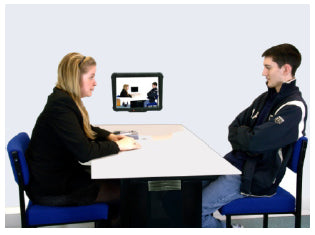

The MS-HDT2 Video Interview Recording System with 15" Touchscreen is a fully featured PACE compliant evidential video recorder. It has cutting edge technology to deliver a recorder capable of meeting all legislation for evidential recordings in a truly compact size. The device has been designed to operate stand alone, writing to media, or form part of a network solution uploading the data to a central repository when connected to the network. Software is supplied, but it should be noted that the solution has been developed to be back end agnostic. The files delivered are in a nonproprietary format and the Meta data is a standard .json and/or .xml file which can be mapped into any data base which can import .xml data.
Complete with Power Supply, 2x Mini Dome Cameras, 1x Stereo Mic and choice of VESA Wall Mount or Table Stand
Features include:
- All in one Touchscreen design (365mm x 295mm x 50mm(approx))
- Up to 4 channel video recording
- Internal Overview camera recorded up to 1080P
- Integrated screen
- Meets all legislation including PACE.
- AES256 Encryption
- SHA256# Digital Signature
- Generates two copies simultaneously
- Network upload
- Auto delete on local SSD once uploaded files SHA256# is verified
- Wi-Fi and Bluetooth
- Integrated battery backup to prevent Data Corruption.
- Simple REC/STOP control
- Burnt in time, date, elapsed time, serial number
- Meta data entry via WebDav or web interface
- Integrated DVD writer (Optional)
MS-HDT2 Interview Video Recording System Kit
| Item | Specification |
Notes |
|---|---|---|
| Video Input | 1 x Digital (internal) 2 x BNC AHD Camera input 1 x PCB AHD Camera connection |
Allows overview, subject and a fourth camera to be connected if required |
| Storage | Internal = 64GB eMMC Flash Memory External = MicroSD/USB |
Records master copy internally for upload and offers options for removable copy |
| Video | H.265 High efficiency Video Coding (multiple rates). | Offers the best format to maximise resolution and minimise storage requirements. |
| Audio | Video Mode = AAC Audio Only Mode = MP3 |
Non-proprietary formats for integration to third party solutions |
| Microphones | 2 x Internal and 1 x 3.5 mm jack to connect external stereo microphone |
2 internal microphones offer backup if external microphone is not used or fails. |
| Data Security | AES256 Encryption | Protects data on device while outside of a secure environment |
| Integrity | SHA256# Digital Signature | Provides chain of evidence from point of capture through to presentation in court |
| USB | USB2.0 | Offers interface for USB backup or DVD Backup |
| RJ45 | High Speed 10/100 Ethernet | Offers upload of files, live streaming and remote setup/diagnostics |
| Wi-Fi | 150Mbs 802.11b,g,n | Can be enabled or disabled. If enabled can offer remote upload and/or APP interface for meta data entry, remote streaming and remote control. |
| Bluetooth | 4.0 | |

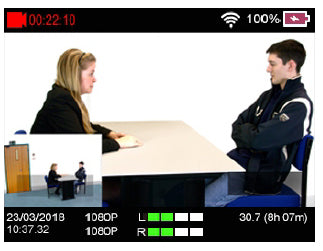

| Screen | 15” Touch Screen | Set up monitor with status information including audio level indicators and memory usage etc. |
| Power | 12V DC Input (Standard) | |
| GPIO | 8 Pin | External triggers and indicators can be connected. |
| LED | 2 x LED Record and Monitoring Indicator | Visual indicator when in record and a second to show when being monitored |
| Audit | Read-only access full audit trail. | |
| Dimensions | 365mm x 295mm x 50mm(approx..) | |
| Legislation | CE and RoHS compliant | Cell |
